M2 Files

M2 files (also called MDX) contain model objects. Each M2 file describes the vertices, faces, materials, texture names, animations and properties of one model. M2 files don't have a chunked format like most other WoW formats.

Models are used for doodads (decoration objects), players, monsters and really everything in the game except for Terrain and WMOs.

Overview

• Global texture list
• Global vertex list
  • Position
  • Blend weights
  • Blend indices
  • Normal
  • Texture coordinates
• Per LOD (There are four of these in each model?)
  • Vertex indices (vertices used by this LOD. Index into global vertex list)
  • Face indices (three per triangle, these index into Vertex indices above)
  • Vertex properties (one per vertex index, usage unknown)
  • Submeshes (one per material, usually)
  • Texture units (refer to a submesh, an index into the global texture list, and a texture unit number to bind to)
• Global bounding volume (used for collisions?)
• Animations, global sequences
• Skeleton
• Additional rendering information: colors, transparency, texture animations, blending modes etc.
• Effects: ribbons, particles
• Lights
• Cameras

Header

The header has mostly the layout of number-offset pairs, containing the number of a particular record in the file, and the offset. These appear at fixed places in the header. Record sizes are not specified in the file.

The unknown blocks have (mostly arbitrary) alphabetic names until we figure out what they are.

Offset	Type	Description
0x000	char[4]	"MD20"
0x004	uint8[4]	Version (00 01 00 00 before Burning Crusade, 04 01 00 00 after BC)
0x008	uint32	model name length (including \0)
0x00C	uint32	model name offset
0x010	uint32	Model type? always 0, 1 or 3 (mostly 0)
0x014	uint32	nGlobalSequences - number of global sequences
0x018	uint32	ofsGlobalSequences - offset to global sequences
0x01C	uint32	nAnimations - number of animation sequences
0x020	uint32	ofsAnimations - offset to animation sequences
0x024	uint32	nC
0x028	uint32	ofsC
0x02C	uint32	nD - always 201 or 203 depending on WoW client version
0x030	uint32	ofsD
0x034	uint32	nBones - number of bones
0x038	uint32	ofsBones - offset to bones
0x03C	uint32	nF - bone lookup table
0x040	uint32	ofsF
0x044	uint32	nVertices - number of vertices
0x048	uint32	ofsVertices - offset to vertices
0x04C	uint32	nViews - number of views (LOD versions?) 4 for every model
0x050	uint32	ofsViews - offset to views
0x054	uint32	nColors - number of color definitions
0x058	uint32	ofsColors - offset to color definitions
0x05C	uint32	nTextures - number of textures
0x060	uint32	ofsTextures - offset to texture definitions
0x064	uint32	nTransparency - number of transparency definitions
0x068	uint32	ofsTransparency - offset to transparency definitions
0x06C	uint32	nI - always 0
0x070	uint32	ofsI
0x074	uint32	nTexAnims - number of texture animations
0x078	uint32	ofsTexAnims - offset to texture animations
0x07C	uint32	nK
0x080	uint32	ofsK
0x084	uint32	nRenderFlags - number of blending mode definitions
0x088	uint32	ofsRenderFlags - offset to blending mode definitions
0x08C	uint32	nY - bone lookup table
0x090	uint32	ofsY
0x094	uint32	nTexLookup - number of texture lookup table entries
0x098	uint32	ofsTexLookup - offset to texture lookup table
0x09C	uint32	nTexUnits - texture unit definitions?
0x0A0	uint32	ofsTexUnits
0x0A4	uint32	nTransLookup - number of transparency lookup table entries
0x0A8	uint32	ofsTransLookup - offset to transparency lookup table
0x0AC	uint32	nTexAnimLookup - number of texture animation lookup table entries
0x0B0	uint32	ofsTexAnimLookup - offset to texture animation lookup table
0x0B4	14 * float	float values ... ? (in range -1000...1000, mostly in -20...30)
0x0EC	uint32	nBoundingTriangles
0x0F0	uint32	ofsBoundingTriangles
0x0F4	uint32	nBoundingVertices
0x0F8	uint32	ofsBoundingVertices
0x0FC	uint32	nBoundingNormals
0x100	uint32	ofsBoundingNormals
0x104	uint32	nO
0x108	uint32	ofsO
0x10C	uint32	nP
0x110	uint32	ofsP
0x114	uint32	nQ
0x118	uint32	ofsQ
0x11C	uint32	nLights - number of lights
0x120	uint32	ofsLights - offset to lights
0x124	uint32	nCameras - number of cameras
0x128	uint32	ofsCameras - offset to cameras
0x12C	uint32	nCameraLookup
0x130	uint32	ofsCameraLookup
0x134	uint32	nRibbonEmitters - number of ribbon emitters
0x138	uint32	ofsRibbonEmitters - offset to ribbon emitters
0x13C	uint32	nParticleEmitters - number of particle emitters
0x140	uint32	ofsParticleEmitters - offset to particle emitters

Skeleton and animation

Standard animation block

Many values that change with time, such as bone animation, etc. are specified using blocks like the following:

(size is 0x1C bytes)

Offset	Type	Description
0x00	int16	interpolation type
0x02	int16	global sequence ID or -1
0x04	uint32	number of (int, int) interpolation ranges
0x08	uint32	offset to interpolation ranges
0x0C	uint32	number of (int) timestamps
0x10	uint32	offset to timestamps
0x14	uint32	number of values
0x18	uint32	offset to values

The values can have various types depending on the kind of data required, like floats, vectors, quaternions etc.

Usually, if animation is used, interpolation ranges will be given for each animation in the global animation list. These ranges refer to keyframes that have given time and data values. The number of timestamps should therefore be equal to the number of data values.

If a global sequence is used, it means there is an implicit interpolation range across all values, and a time range from 0 to the proper global sequence timestamp.

If the interpolation type is 0, in some cases that might mean that no animation is given (like for bones), in other cases it means that a single constant data value should be used (like for colors and effect paramters)

Interpolation types:

Value	Description
0	none / static value
1	linear
2	(spline?) in addition to values, in/out tangents are given

Maybe the interpolation types here are the same as the WC3 MDL files? (bezier, etc)

Global sequences

nGlobalSequences 32-bit unsigned integers starting at ofsGlobalSequences

A list of timestamps that act as upper limits for global sequence ranges.

Animation sequences

List of animations present in the model.

Based on linghuye's work.

nAnimations 68-byte records starting at ofsAnimations

Offset	Type	Description
0x00	uint32	Animation ID in AnimationData.dbc
0x04	uint32	Start timestamp
0x08	uint32	End timestamp
0x0C	float	moving speed (for walk/run animations?)
0x10	uint32	1 for non-looping?
0x14	uint32	Flags?
0x18	uint32	?
0x1C	uint32	0 ?
0x20	uint32	Playback speed?
0x24	float[6]	Bounding box (2 vectors)?
0x3C	float	radius?
0x40	int16	Index of the next animation of the same Animation ID. (ex: PCs have multiple different copies of the Dance (id:69) animation). -1 if there are no other animations of this ID.
0x44	uint16	?

Bones

nBones records of 0x6C bytes starting at ofsBones, followed by data referenced in these records.

The bone indices in the vertex definitions seem to index into this data.

Based on linghuye's work:

Offset	Type	Description
0x00	uint32	index into block F or -1
0x04	uint32	Flags
0x08	uint16	Parent bone ID or -1
0x0A	uint16	?
0x0C	uint32	? (unknown, found in Client 2.0 M2s)
0x0C	AnimationBlock (float, float, float)	Animation data for translation
0x28	AnimationBlock (float, float, float, float)	Animation data for rotation
0x44	AnimationBlock (float, float, float)	Animation data for scaling
0x60	float[3]	Pivot point

Keyframe data: float[3] vectors for translation and scaling, float[4] quaternions for rotation.

In Client 2.0 the Quaternion values are shorts, that need to be converted by Floats by Float = (Short > 0 ? Short-32767 : Short+32767)/32767.0; Backwards short to float scaling?

Flags:

Value	Description
8	billboarded
512	transformed

The billboarding bit is used for various things:

• Light halos around lamps must always face the viewer
• The cannonball stack model (in the Deadmines or Booty Bay), where each cannonball is a crude hemisphere, they always face the viewer to create the illusion of actual cannonballs (one wonders why Blizzard bothered with this, is a small sphere so hard to model? -_-)

Geometry and rendering

Vertices

48 bytes per vertex

Models, too, use a Z-up coordinate systems, so in order to convert to Y-up, the X, Y, Z values become (X, -Z, Y).

Offset	Type	Description
0x00	float[3]	Position
0x0C	uint8[4]	Bone weights (0 to 255)
0x10	uint8[4]	Bone indices (0 to nBones-1)
0x14	float[3]	Normal vector
0x20	float[2]	Texture coordinates
0x28	float[2]	0?

The fields marked with ? probably have to do with skeletal animation.

++++ Guest: Considering "standard" GPU sceletal animation (matrix palette, 4 weights/bones per vertex):

then "usually 255" should be an array of 4 unsigned chars defning the vertex weight for 4 bones

tehn "vertex group" should be an Array of 4 unsigned chars indexing 4 bones ++++

Views (LOD)

Every model has four of these, at 0x2C bytes each. I'm not sure if it is LOD because each one of them has the same amount of vertices for all four data sets. (???) First I thought this might be different vertex orderings from different views, to ease polygon sorting for transparent faces, but that's not it either. Hmm.

Starting at ofsViews, there are four View (LOD?) header records followed by the data for all four.

Offset	Type	Description
0x00	uint32	number of elements in the index list
0x04	uint32	offset to the index list
0x08	uint32	number of elements in the triangle list (this is 3* the number of triangles to be drawn)
0x0C	uint32	offset to the triangle list
0x10	uint32	number of elements in the vertex property list
0x14	uint32	offset to the vertex property list
0x18	uint32	number of elements in the submesh list
0x1C	uint32	offset to the submesh list
0x20	uint32	number of elements in the texture list
0x24	uint32	offset to the texture list
0x28	uint32	LOD distance or something?

About Views(By ArtsyLee)

There are four views. They are bone LOD, not model LOD. There is a uint32 at '0x28' offset each of them which representatives the maximum bone amounts that can be used in view submesh. The first is 256, the second 75, the third 53, and the fourth is 21. The amounts of submesh may be different and usually the back ones have more than that in front ones.

You can choose which view to use according to the biggest shader registers your video card can support. For either high-end video card or low-end video card, you can be free to calculate the skeletal animations without cutting bones.

The shaders in the BLS files max out at 21 (0-20), so they are using view 4. The bone indices in BlockY are list of bone subsets needed each submesh. These bone subsets tell you which bones to load into the shaders for each submesh.

Indices

A 16-bit unsigned integer per index, specifies vertices from the global vertex list.

Triangles

For every triangle, three 16-bit unsigned ints. These refer to the index list given above, not the global vertex list.

Vertex properties

4 bytes per vertex. Usually 0? Purpose unknown.

Submeshes

32 bytes per submesh. 48 bytes per submesh after client 2.0 (Burning Crusade expansion)

Offset	Type	Description
0x00	uint32	Mesh part ID
0x04	uint16	Starting vertex number
0x06	uint16	Number of vertices
0x08	uint16	Starting triangle index (that's 3* the number of triangles drawn so far)
0x0A	uint16	Number of triangle indices
0x0C	uint16	Number of elements in Block Y
0x0E	uint16	Starting index in Block Y
0x10	uint16	Highest number of bones needed at one time in this Submesh
0x12	uint16	Unknown
0x14	float[3]	3 float values?
0x20	float[4]	4 float values? (only in Client 2.0 M2s)

Mesh part ID: for character models, each hairstyle/thick armor/etc is present in the mesh, so to render a character with a specific set of looks, some of the submeshes should be ommitted based on this ID.

Reference to Block Y: the base number seems to increase per LOD, and the numbers in Block Y, in turn, point to bones (?) - indices to Block E. Maybe this could be an indicator of bones used in a submesh, or an animation sequence or something?

About LOD: Creatures\AncientProtector\AncientProtector.m2 is the first model I found where the LOD levels have a significant difference. The 4th LOD level still has the same number of vertices/polygons, but it has more submeshes (more sophisticated animation/lighting or something? I dunno)

Texture units

More specifically, textures for each texture unit. Based on the current submesh number, one or two of these are used to determine the texture(s) to bind.

24 bytes per record.

Offset	Type	Description
0x00	uint16	Flags
0x02	int16	Render order (used in skyboxes to ditch the need for depth buffering)
0x04	uint16	Submesh index
0x06	uint16	Submesh index (repeated?)
0x08	int16	Color index or -1
0x0A	uint16	Index into render flags table
0x0C	uint16	Texture unit number (0 or 1 - index into the texture unit lookup table)
0x0E	uint16	always 1?
0x10	uint16	Texture to use (index into the texture lookup table)
0x12	uint16	Texture unit number (repeated?)
0x14	uint16	Transparency (index into transparency lookup table)
0x16	uint16	Texture animation (index into the texture animation lookup table)

Flags: usually 16 for static textures, and 0 for animated textures.

Render flags

nRenderFlags (uint16, uint16) pairs starting at ofsRenderFlags

The first value contains flags.

Flag	Meaning
0x01	Unlit
0x02	Unfogged?
0x04	Two-sided (no backface culling if set)
0x08	?
0x10	Disable z-buffer?

The second value specifies the blending mode

Value	Meaning
0	Opaque
1	Alpha testing only
2	Alpha blending
3	Additive?
4	Additive alpha?
5	Modulate?
6	Used in the Deeprun Tram subway glass, supposedly (src=dest_color, dest=src_color) (?)

Most of these blend values are taken from the MDL docs, but they sort of work (like additive blending for light shafts and such)

Texture unit lookup table

nTexUnits 16-bit integers starting at ofsTexUnits. (values: -1, 0, 1)

For models that use multitexturing, this maps given texture unit numbers into actual texture unit numbers (0 or 1).

Values of -1 seem to mean environment mapping.

One model is of special interest, Creature/KelThuzad/KelThuzad.m2, which is the only one that has an nL of 3, and has three texture units specified for some of its submeshes. Sure enough, two of those map to 0 and 1, and one maps to -1.

More confusion thanks to my favorite "weird" model, World/Generic/Gnome/Passive Doodads/GnomeMachine/GnomeSubwayGlass.m2, which is the translucent, environment mapped glass tunnel in the Deeprun Tram. It only has a single value in this block, -1, which is used for the single texture layer in both render operations in the model. This and the magic with rendering flags/blend modes make up the neat transparent-reflective glass effect, but confuse me even more about how envmapping and such is handled. (and where it seems to get the bluish color from - is it in the model (no color blocks in this particular model), the wmo, a solid background color, or simply the result of the blending used?)

As a side note, on my (dated) system WoW does every texture unit in a single pass.

Colors and transparency

Colors

nColors records of 0x38 bytes starting at ofsColors, followed by data referenced in these records.

For some swirling portals and volumetric lights, these define vertex colors. Referenced from the Texture Unit blocks in the LOD part. Contains a separate timeline for transparency values. If no animation is used, the given value is assumed to be constant.

Offset	Type	Description
0x00	AnimationBlock (float,float,float)	Data for RGB color values
0x1C	AnimationBlock (short)	Data for opacity values

Opacity values: 32767 = opaque, 0 = transparent.

Transparency lookup table

nTransLookup 16-bit integers starting at ofsTransLookup. (values: 0 to nH-1 ?)

Contains indices into the Transparency block. Used by the texture unit definitions in the LOD block.

Transparency

Specifies global transparency values (in addition to the values given in the Color block - I assume these are multiplied together eventually?)

nTransparency records of 0x1C bytes starting at ofsTransparency, followed by data referenced in these records.

Offset	Type	Description
0x00	AnimationBlock (short)	Data for transparency values

Transparency: 32767 for fully opaque, 0 for fully transparent

Textures

Textures are defined globally in a list, additionally, a lookup table is given, referenced during rendering, to select textures.

Texture lookup table

Just a list of 16-bit integers. nTexLookup items starting at ofsTexLookup.

Texture definitions

First is a list of nTextures texture definition records, 16 bytes per record, starting at ofsTextures. After it comes a string block with the texture filenames.

Offset	Type	Description
0x00	uint32	Texture type (aka replacable id)
0x04	uint16	Unknown, usually 0
0x06	uint16	Flags
0x08	uint32	Filename length
0x0C	uint32	Offset to filename

Texture type is 0 for regular textures, nonzero for skinned textures (filename not referenced in the M2 file!) For instance, in the NightElfFemale model, her eye glow is a type 0 texture and has a file name, the other 3 textures have types of 1, 2 and 6. The texture filenames for these come from client database files:

DBFilesClient\CharSections.dbc
DBFilesClient\CreatureDisplayInfo.dbc
DBFilesClient\ItemDisplayInfo.dbc

(possibly more)

Value	Meaning
0	Texture given in filename
1	Body + clothes
2	Cape
6	Hair, beard
8	Tauren fur
11	Skin for creatures
12	Skin for creatures #2
13	Skin for creatures #3

Flags:

Value	Meaning
1	Texture wrap X
2	Texture wrap Y

Texture animation lookup table

nTexAnimLookup 16-bit integers starting at ofsTexAnimLookup. (values: -1, 0 to nTexAnims-1)

Contain indices into the texture animations list, or -1 meaning a static texture.

Texture animations

This block contains definitions for texture animations, for example, flowing water or lava in some models. The keyframe values are used in the texture transform matrix.

nTexAnims records of 0x54 bytes starting at ofsTexAnims, followed by data referenced in these records.

Offset	Type	Description
0x00	AnimationBlock (float, float, float)	Translation
0x1C	AnimationBlock (float, float, float ???)	Rotation?
0x38	AnimationBlock (float, float, float)	Scaling?

The three subrecords specify texture transforms. Translation seems to work, producing nice flowing lava and waterfalls.

Effects

Ribbon emitters

nRibbonEmitters records of 0xDC bytes starting at ofsRibbonEmitters, followed by data referenced in these records.

These are called ribbon emitters in the strings buried in wow.exe. I guess these are some sort of ribbon-like visual effects similar to particles. In Warcraft 3 (of which the WoW engine is quite loosely based off of) there was also the possibility of ribbon-like effects in trails and flowing clothing. This is also how in WoW the feathers of the gryphons, hippogryphs, and bats flow in the wind as you rise and descend.

Note: the models that contain ribbon emitters and are viewable in the game world are: wisps in BFD, and energy trails in the COT (not the actual instance, but the entrance cave in Tanaris Desert). The only other models with ribbon emitters are spells and effects. Gryphons/etc don't have ribbon emitters, the feathers are part of their geometry.

What about the ribbons in the model of the Ziggurat (or spirit tower, haven't played warcraft 3 in awhile) that seem to swirl around the Ziggurat's crystal in Stratholme? (It's probably a good idea to play this in WoW to see what i'm talking about.) -DG

• must be one of those server-side specified objects because I can't see them in wowmapview.

The records have the following structure:

Offset	Type	Description
0x00	int32	ID? always -1
0x04	int32	Bone ID
0x08	float[3]	position
0x14	int32	Number of texture refs
0x18	int32	Offset to texture refs (ints)
0x1C	int32	Number of ints #2
0x20	int32	Offset to list of ints #2
0x24	AnimationBlock (float, float, float)	Color
0x40	AnimationBlock (short)	Opacity
0x5C	AnimationBlock (float)	Height above
0x78	AnimationBlock (float)	Height below
0x94	float	Something about length/lifespan?
0x98	float	Something about length/lifespan?
0x9C	float	Usually 0
0xA0	short[2]	(blending modes maybe?) (1,1)
0xA4	AnimationBlock (int)	? (always 0)
0xC0	AnimationBlock (int)	? (always 1)

Parameters from the MDL format that are probably in here somewhere: life span, emission rate, rows, cols ...?

Particle emitters

nparticleEmitters records of 0x1F8 bytes starting at ofsParticleEmitters, followed by data referenced in these records.

The records have the following structure:

Offset	Type	Description
0x000	int32	id (always -1?)
0x004	int32	flags
0x008	float[3]	position
0x014	int16	Bone ID
0x016	int16	Texture ID
0x018	uint32	Number of ints referenced #1
0x01C	uint32	Offset to list of ints #1
0x020	uint32	Number of ints referenced #2
0x024	uint32	Offset to list of ints #2
0x028	int16	Blending mode
0x02A	int16	Emitter type
0x02C	int16	Particle type
0x02E	int16	Texture tile rotation (-1,0,1)
0x030	int16	Rows on texture
0x032	int16	Columns on texture
0x034	AnimationBlock (float) [10]	Parameters
0x14C	float[36]	unknown float values - more parameters?
0x14C	float	Midpoint in lifespan? (0 to 1)
0x150	uint32[3]	ARGB colors (start, mid, end)
0x15C	float[3]	Particle sizes (start, mid, end)
0x168	short[10]	Indices into the tiles on the texture?
0x17C	float[3]	Unknown
0x188	float[3]	Something about particle scaling? Hm.
0x194	float	Slowdown
0x198	float	Particle rotation
0x19C	float[10]	Unknown (usually all 0)
0x1C4	float[6]	Unknown, usually (2.5, 0.7, 7, 0.9, 0, 0)
0x1DC	AnimationBlock (int)	unknown

About slowdown: for nonzero values, instead of travelling linearly the particles seem to slow down sooner. I can't work out the exact function but for a value of, say, 10, the particles pretty much stay in place. Not the same effect as gravity, though. Update: thanks to nsz for the formula. Speed is multiplied by exp( -slowdown * t )

About particle rotation: 0 for none, 1 to rotate the particle 360 degrees throughout its lifetime.

The ten animatable particle parameters are:

Number	Description
0	Emission speed
1	Speed variation (range: 0 to 1)
2	Spread? (range: 0 to pi)
3	? (range: 0 to 2*pi)
4	Gravity
5	Lifespan
6	Emission rate
7	Emission area length
8	Emission area width
9	Gravity? (much stronger)

Emitter types:

Value	Description
1	Plane (rectangle)
2	Sphere
3	(Spline? can't be bothered to find one)

Particle types:

Value	Description
0	"normal" particle
1	large quad from the particle's origin to its position (used in Moonwell water effects)
2	seems to be the same as 0 (found some in the Deeprun Tram blinky-lights-sign thing)

Flags:

Value	Description
0x1000	do not billboard (used for some water wake ripple effects)

Miscellaneous

Bounding volumes

For some models a simplified bounding volume is given. This is probably used for collision detection?

The nBoundingVertices vertices used by the bounding volume's faces start at ofsBoundingVertices. Each vertex is given by 3 floats.

The faces start at ofsBoundingTriangles. The number nBoundingTriangles once again contains the number of indices used, so divide by 3 to get the number of triangles. Each triangle is given by 3 16-bit integers that index the bounding vertices list. Each face also has a corresponding normal vector (?), these start at ofsBoundingNormals. Therefore, it should be true that nBoundingNormals * 3 = nBoundingTriangles.

Lights

nLights records of 0xD4 bytes starting at ofsLights, followed by data referenced in these records.

The records have the following structure:

Offset	Type	Description
0x00	uint16	type
0x02	uint16	Bone ID
0x04	float[3]	coordinates
0x10	AnimationBlock (float, float, float)	Ambient color
0x2C	AnimationBlock (float)	Ambient intensity
0x48	AnimationBlock (float, float, float)	Diffuse color
0x64	AnimationBlock (float)	Diffuse intensity
0x80	AnimationBlock (float)	Attenuation start?
0x9C	AnimationBlock (float)	Attenuation end?
0xB8	AnimationBlock (int)	usually 1

Some light types:

Value	Description
0	Directional
1	Point light

Cameras

These blocks seem to be present in the "flyby" camera models which completely lack geometry, and the main menu backdrop models which are supposed to have a fixed camera. Additionally, characters and monsters also have this block (I wonder why)

nCameras records of 0x7C bytes starting at ofsCameras, followed by data referenced in these records.

Offset	Type	Description
0x00	int32	id or maybe a parent bone? usually -1
0x04	float	FOV
0x08	float	Far clipping plane
0x0C	float	Near clipping plane
0x10	AnimationBlock (float, float, float)	Translation for position?
0x2C	float[3]	Position?
0x38	AnimationBlock (float, float, float)	Translation for target?
0x54	float[3]	Target?
0x60	AnimationBlock (float)	Rotation or roll? (usually 0 or 2*pi)

For static cameras the animatable data items are all 0. The FOV is not in radians, but some weird scale... Multiplying by about 35 seems to give correct-ish results in degrees.

The reason that non-mainmenu and non-geometry M2s have cameras (atleast in Warcraft 3) was so you could see the unit's portrait. In WoW, these models have cameras so that when you enter the Character menu (press "C") you see your character regardless of what model you currently have. Also, I believe that one of the main menu models has two cameras in it (I believe it's the orc one...).-DG

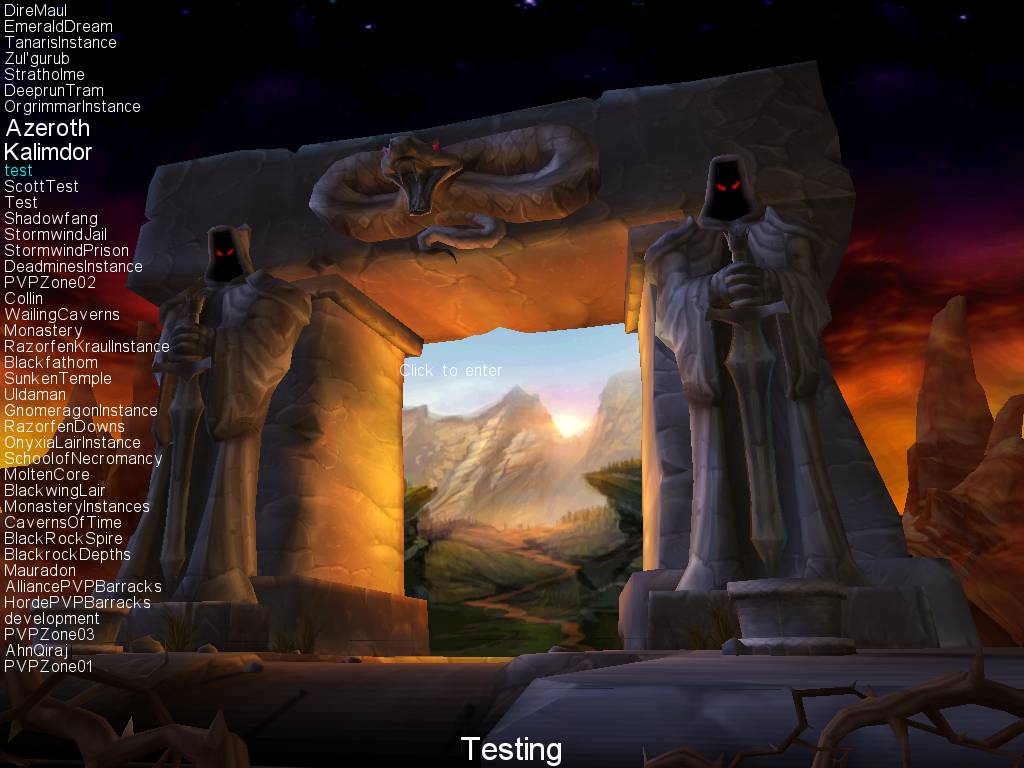

Oh, that's right. Neat. I added menu backdrops using these cameras. Obviously it's still missing particle emitters, but that can be fixed eventually... - Z.

Camera lookup table

Lookup table for cameras? It seems to be persent only if a camera is present too.

nCameraLookup 16-bit integers starting at ofsCameraLookup. (values: 0..nCameras-1)

Unknown blocks

Block C

nC 16-bit integers starting at ofsC (values: -1 to nAnimations-1)

Lookup table for animations?

Block D

nD records of (int16, int16) starting at ofsD

Maybe a lookup table for animations? Since the numbers happen to be in fixed positions. The first short seems to increase with the position for models with all animations (like characters), the second seems to be flags or a modifier? Or something.

Block F

nF 16-bit integers starting at osfF (values: -1 to nBones-1)

nF is 27 for most characters/models with lots of animation. For static models it's 1. Intermediate values are rare.

Lookup table for bones?

Block K - Replacable texture lookup

nK 16-bit integers starting at ofsK. (values: -1 or 0 to nTex-1)

A reverse lookup table for 'replaced' textures, mapping replacable ids to texture indices or -1. Only goes up to the maximum id used in the model.

Block Y

nY 16-bit integers starting at ofsY. (values: 0 to nBones-1)

Lookup table for bones that transform geometry? Referenced in the various geoset definitions.

Block O - Attachments

nO records of 0x30 bytes starting at ofsO, followed by data referenced in these records.

Offset	Type	Description
0x00	uint32	id (position of the record in block P)
0x04	uint32	bone
0x08	float[3]	position
0x14	AnimationBlock (int)	Data

Much like Block Q this one also specifies a bunch of locations on the body - hands, shoulders, head, back, knees etc. Maybe this one is actually used to put items on a character. This seems very likely as this block also contains positions for sheathed weapons, a shield, etc.

Here's the list of position slots (by ID, or index in block P) for character models:

ID	Description	ID	Description	ID	Description
0	Left wrist (shield)	12	Back	24	-
1	Right palm	13	-	25	-
2	Left palm	14	-	26	Right back sheath
3	Right elbow	15	Bust	27	Left back sheath
4	Left elbow	16	Bust	28	Middle back sheath
5	Right shoulder	17	Face	29	Belly
6	Left shoulder	18	Above character	30	Left back
7	Right knee	19	Ground	31	Right back
8	Left knee	20	Top of head	32	Left hip sheath
9	-	21	Left palm	33	Right hip sheath
10	-	22	Right palm	34	Bust
11	Helmet	23	-	35	Right palm

For weapons, usually 5 of these points are present, which correspond to the 5 columns in ItemVisuals.dbc, which in turn has 5 models from ItemVisualEffects.dbc. This is for the weapon glowy effects and such. The effect ID is the last column in ItemDisplayInfo.cdb. (I should document these cdb files properly somewhere, sigh)

Block P

nP 16-bit integers starting at ofsP. (values: -1, 0 to nO-1)

Lookup table for whatever is in block O, I guess :)

Block Q - Attachments

nQ records of 0x2C bytes starting at ofsQ, followed by data referenced in these records.

This might be definitions for weapon attachment slots or something like that... Mostly present on characters, creatures and items.

Offset	Type	Description
0x00	char[4]	some kind of ID, starts with '$'
0x04	uint32	database ID?
0x08	uint32	bone ID
0x0C	float[3]	floats (coordinates?)
0x18	int16[2]	animation block header?
0x1C	uint32	number of (int, int) ranges
0x20	uint32	offset to (int, int) ranges
0x24	uint32	number of (int) values
0x28	uint32	offset to (int) values

The records seem to contain a truncated animation block. The int values look like timestamps, and there are no data values. The ranges reference more integers than are given in the list (there's always 1 less item). Weird.

Each record specifies a transformation matrix for attaching another model to a certain point. By translating to the attachment position and then applying the transform matrix of the parent bone, the other model at its default origin will snap right into place. This is how weapons are affixed to the hands, helmets and shoulder armor attached, and spell effects are also positioned this way.

Some position identifiers:

ID	Description
$TRD	Crotch
$CCH	Bust
$BTH	In front of head
$CHD	Head
$SHL, $SHR	Left/right shoulder
$CSL, $CSR	Left/right hand
$BWP, $BWR	Right hand (for weapons maybe?)

The rest are either copies of the crotch position, or down on the floor. I suppose these are used to position spell effects (like a levelup flash or something) and damage effects.
